    J63A Series Micro Rectangular Electrical Connector with 0.635mm Spacing and Twisted Wire Elastic Micro-Pin Inserts for Screw and Nut Connection

    Ask Lasest Price
    Brand Name : ZSX
    Model Number : J63A-222-009-261-TH
    Certification : ISO9001
    Price : (Depending on the quantity )
    Payment Terms : T/T,D/P,Western Union
    Supply Ability : 1000000Pcs/Year
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    J63A Series Micro Rectangular Electrical Connector with 0.635mm Spacing and Twisted Wire Elastic Micro-Pin Inserts for Screw and Nut Connection

    1A Rectangle Connector 9 / 15 / 21 Pin Female Jack Connector J63A-222-009-261-TH
    Micro Rectangular Connector J63A-222-009-261-TH Jack(Female) Connector

    J63A series ultra-micro rectangular electrical connectors feature twisted wire elastic micro-pin inserts (commonly known as twist pins) with a spacing of 0.635mm. They have a compact size. The plugs and sockets are connected by screw and nut screwing, providing smooth insertion and extraction and reliable locking. They are suitable for interconnection in various electrical circuit systems with high density, miniaturization, lightweight, and high reliability requirements. Meet the requirements of lightweight and miniaturization of the system.

    Product Performance Details
    Product modelJ63A-222-009-261-THContact resistance≤21 mΩ
    Ambient temperature-55℃~+125℃Insulation resistance≥5000MΩ 100VDC
    Vibration10Hz~2000Hz 196m/s²Medium pressure resistance250V
    Random vibrationPower spectral density is 0.4G²/Hz and the root mean square value of the total acceleration rate is 23.1GMechanical life200 times
    Impact980m/s² 6msRated current1 A
    Product Display

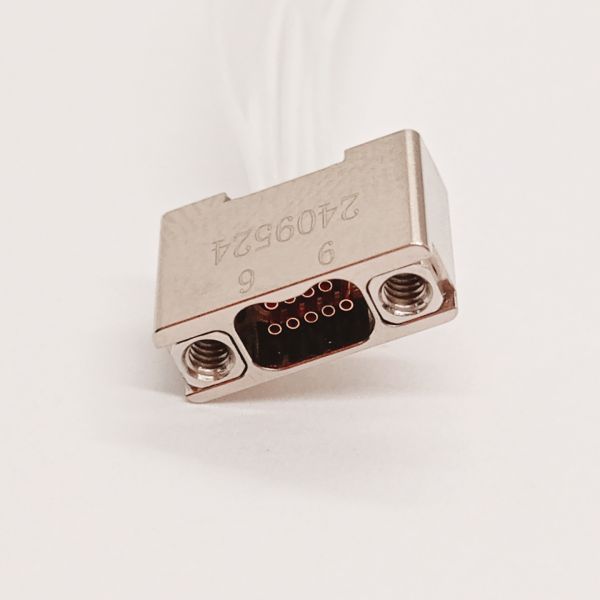

    J63A series rectangular connector product view Close-up view of J63A connector pins and construction
    Product External Dimensions
    Technical drawing showing dimensions of J63A connector
    Related Product Recommendations
    Related rectangular connector product Additional rectangular connector model
    Product Selection Reference
    Product selection guide and specifications chart
    Display of Strength
    Production Plant Area
    Machining Production Workshop
    Machining workshop equipment and production area CNC machines and manufacturing equipment
    Precision Assembly Production Workshop
    Precision assembly workstations and technicians Quality control and assembly processes
    Glass-to-Metal Sealed Production Workshop
    Glass-to-metal sealing production equipment Specialized sealing process machinery
    Obtained Certification Certificate
    Quality management system certification Industry compliance and standards certification
    Customer Visit
    International customers visiting manufacturing facility Technical discussion with visiting clients
    Product Packaging
    Product packaging and anti-static materials Organized packaging for shipping
    Packaging and Shipping
    Shipping and logistics process diagram
    • Standard export carton
    • As per customized specifications such as logo or others According to customers' requirements
    • Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities, ODM, etc.)
    Frequently Asked Questions
    Q: Are you trading company or manufacturer?
    A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
    Q: What are the main products of your company?
    A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
    Q: Does your company accept customized products?
    A: We accept ODM.
    Q: Does your company provide free samples?
    A: We support free samples with freight paid on delivery.
    Q: What is the minimum order quantity of your company's products?
    A: 200 pieces. The price is more expensive under 200 pieces.
    Q: Which logistics company does your company ship through?
    A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
    Q: How long does it usually take to receive the goods?
    A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
    Q: What payment methods does your company accept?
    A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T)
    Q: How long is your warranty?
    A: The warranty period is three months.
